| Author |
 Topic  |
|
TomDrewett
United Kingdom
300 Posts |
 Posted - 29/05/2025 : 19:09:38
|
We have owned this M Type for nearly 20 years. The first owner was Bunny Tubbs, a motoring journalist. We have found reference to him competing at Brooklands in 1934 and various trials, and that the car was supercharged.

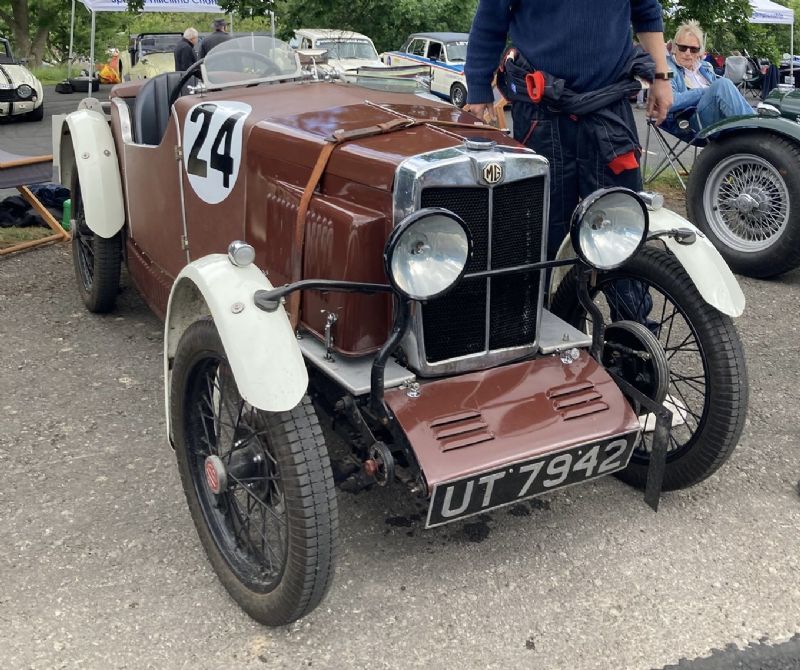

The attached picture is the car today (unsupercharged and in the style of a 12/12) and one can see the modified driver side bonnet to accommodate said supercharger.
We are looking for:
- whatever archive pictures that may be out there
- any other information that MMM members may be aware
- speculation of supercharger type and installation format
- any further information about previous owners
MG M Type |
|
|
TomDrewett
United Kingdom
300 Posts |
Posted - 30/05/2025 : 07:00:30
|
Additional questions
- any information about existing supercharged M Types
- was this a factory fitted option |
 |
|
|
Simon Johnston
United Kingdom
6597 Posts |
Posted - 30/05/2025 : 07:38:45
|
Would the supercharger be on the offside of the engine, given that the inlet ports are on the nearside? Or might this have been the type with an inlet pipe passing over the top of the engine?
Simon J
J3437 |
|
|
|
Onno
Netherlands
1108 Posts |
Posted - 30/05/2025 : 11:04:55
|
There isn’t much space on the other side of the engine with the exhaust being there.
So this and front mount are the only AA head supercharger mounts I’ve seen
Onno "J,D,M" Könemann |
|
|
|
Simon Johnston
United Kingdom
6597 Posts |
Posted - 30/05/2025 : 11:12:09
|
So the inlet pipe goes over the top of the engine, Onno? I’m sure I’ve seen pictures of that, but where?
Simon J
J3437 |
|
|
|
Nick Feakes
USA
3610 Posts |
Posted - 30/05/2025 : 12:42:49
|
Tom
I assume you have the pictures of the car that are on the Register?
Nick
Webmaster |
|
|
|
TomDrewett
United Kingdom
300 Posts |
Posted - 30/05/2025 : 18:01:33
|
quote:
Originally posted by Nick Feakes
Tom
I assume you have the pictures of the car that are on the Register?
Nick
Webmaster
Hi Nick, yes aware of those ones #128578; |
|
|
|
Onno
Netherlands
1108 Posts |
Posted - 30/05/2025 : 18:13:58
|
Now I’m curious, what is the chassis nr?
Onno "J,D,M" Könemann |
|
|
|
LewPalmer
USA
3363 Posts |
Posted - 30/05/2025 : 18:29:52
|
2M2205
Lew Palmer
PA1169, NA0651 |
|
|
|
TomDrewett
United Kingdom
300 Posts |
Posted - 30/05/2025 : 19:05:27
|
| Mispost! |
Edited by - TomDrewett on 30/05/2025 19:16:22 |
|
|
|
TomDrewett
United Kingdom
300 Posts |
Posted - 30/05/2025 : 19:13:45
|

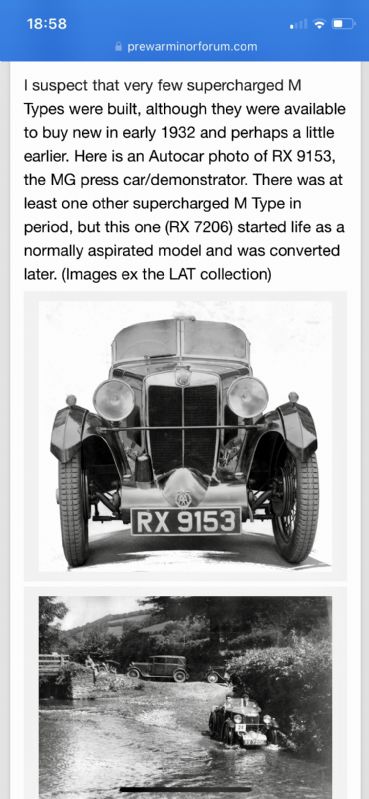

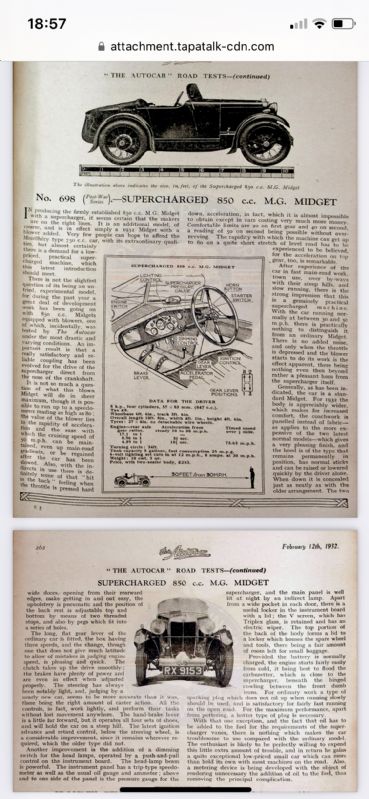

I am attaching a couple of additional bits of information provided by PWM forum members from the LAT library. It seems the original factory supercharged M Types had the typical MMM supercharger configuration direct drive from crank with s/charger & carburettor within the dumbirons. Also UT 7942 is a 1931 car, whereas factory release was not until 1932.
So, did Bunny Tubbs have a prototype or engineer something himself#129300;
MG M Type |
|
|
|
JMH
United Kingdom
937 Posts |
Posted - 03/06/2025 : 11:16:09
|
quote:
Originally posted by Simon Johnston
So the inlet pipe goes over the top of the engine, Onno? I’m sure I’ve seen pictures of that, but where?
Simon J
J3437

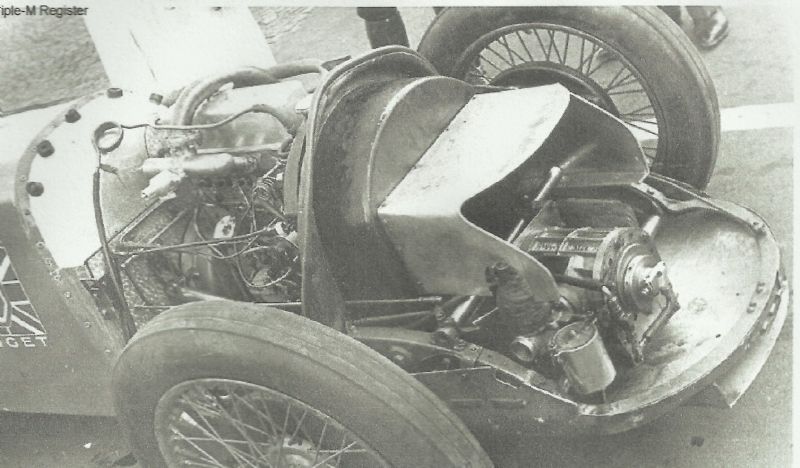

Probably EX127 Simon? But odd in that whilst the inlet went over the cam cover; it was on an AB head.
|
|
|
|
coracle
United Kingdom
2273 Posts |
Posted - 03/06/2025 : 13:40:14
|
| Was the AB head a later development which utilized the inlet going over the cam cover to avoid messing with the blower mounting? |
|
|
|
Westbury
United Kingdom
2255 Posts |
Posted - 03/06/2025 : 14:31:59
|
Great to see another period picture I haven’t seen before! Thanks, Jeremy.
Chris |
|
|
|
Reinout
USA
257 Posts |
|
|
Simon Johnston
United Kingdom
6597 Posts |
Posted - 03/06/2025 : 18:04:28
|
Could be, Jeremy! Thanks for posting the photo.
Simon J
J3437 |
|
|
|
